253 MA ( UNS S30815) Plates Supplier

Table of Contents

What is 253 MA?

253 MA was developed over 30 years ago when there was a need in the industry for heat-resistant stainless steel with high strength and good oxidation resistance. 253 MA has exceptional strength and unrivaled heat resistance.

Despite its low nickel content, 253 MA alloy has an excellent combination of creep strength, high oxidation resistance, and erosion at extremely high temperatures. It gets its heat resistance from the tight control of micro-alloy.

In addition, its creep rupture strength from the combination of Nitrogen, Carbon, and Cerium, and its superior oxidation resistance (to 2000 degrees F) from the variety of Cerium and Silicon. All of this results in a high-quality, less expensive alloy than most heat-resistant alloys.

Features of 253 MA plates:

  • Resistance to oxidation up to 2000 degrees Fahrenheit
  • High resistance to sulfidation
  • Superior toughness at high temperatures
  • High-temperature abrasion resistance is good
  • Affordable price

This alloy is weldable using all welding processes. Our plates show tensile strength at high temperatures.

Stainless Steel 253 MA Industrial Plates, Stainless Steel 253 MA Plates Supplier in Mumbai, India.

SMM Industries LLP is a supplier, producer, and exporter of 253 MA plates. The organization continues to improve its outputs in response to the evolving market trend and the needs of its customers. We also use the latest technologies and modern machinery. We have a large stock of various shapes, specifications, and standard plates.

Applications of 253 MA Plates:

  • Paper & Pulp Companies
  • High-Pressure Applications
  • Oil and Gas Industry
  • Chemical Refinery
  • Pipeline
  • High-Temperature Application
  • Water Pipe Line

Ready Stock of 253 MA Stainless Steel Plates, SS 253 MA (UNS S30815) Plates Stockist in Mumbai.

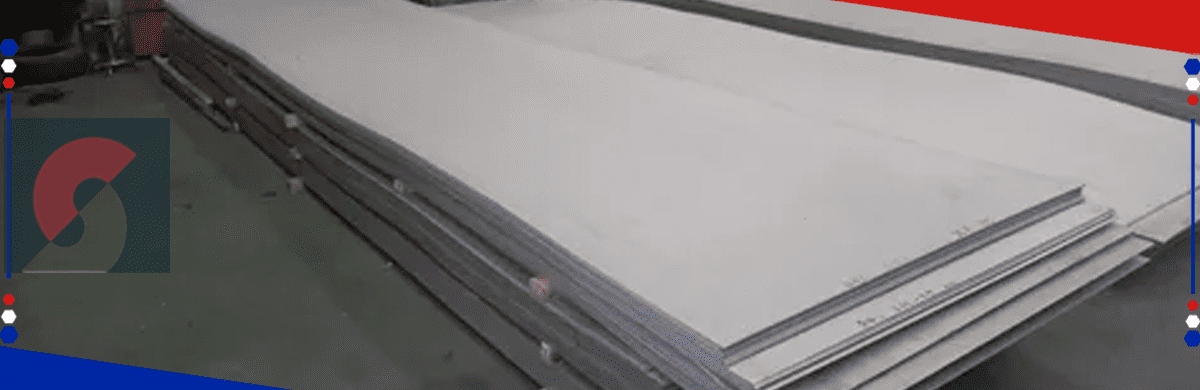

253 MA Plates

Specification of 253 MA ( UNS S30815) Plates

Standard

ASTM A240 / ASME SA240

Thickness

0.3 mm to 120 mm

Width

1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Length

2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Sheets Surface Finish

No.1, 2B, BA, 8K Mirror, Hairline, satin (Met with Plastic Coated) Embossed, brush, No.4, HL, matt, pvc etc.

Sheets Hardness

Half Hard, Quarter Hard, Soft, Hard, Spring Hard

Value added services for Plates

Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing

Value Added Service

Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Stock availability of 253 MA ( UNS S30815) Plates

Hot Rolled Plates

253 MA ( UNS S30815) Hot Rolled Plates

  • Stainless Steel 253 MA Hot Rolled Plates
  • ASME SA 240 253 MA ( UNS S30815) Stainless Steel HR Plates
  • 253 MA Stainless Steel HR Plates
  • SS 253 MA Hot Rolled Plates
  • Stainless Steel S253 MA HR Plates

Cold Rolled Plates

253 MA ( UNS S30815) Cold Rolled Plates

  • Stainless Steel 253 MA Cold Rolled Plates
  • SS 253 MA Cold Rolled Plates
  • Stainless Steel S253 MA CR Plates
  • 253 MA Stainless Steel CR Plates
  • Stainless Steel 253 MA Cold Rolled Plates
  • ASME SA 240 253 MA ( UNS S30815) Stainless Steel 253 MA CR Plates

Chequered Plates

253 MA ( UNS S30815) Chequered Plates

  • Stainless Steel S253 MA Chequered Plates
  • Stainless Steel 253 MA Chequered Plates
  • ASME SA 240 253 MA ( UNS S30815) Stainless Steel Chequered Plates
  • UNS S30815 Chequered Plate
  • 253 MA Stainless Steel Chequered Plates
  • SS 253 MA Chequered Plates

Contact us to get a quick quote

If you require any further information, Please do not hesitate to contact us.
Contact Us

Equivalent Grades 253 MA ( UNS S30815) Plates

STANDARD WERKSTOFF NR. UNS SS EN
253 MA 1.4835 S30815 2368 X9CrNiSiNCe21-11-2

Chemical Composition of 253 MA ( UNS S30815) Plates

Grade C Mn Si S Ce Ni Cr P
253 MA 0.05 – 0.10 0.80 max 1.40 – 2 0.030 max 0.03 – 0.08 10 – 12 20 – 22 0.040 max

Mechanical Properties of 253 MA ( UNS S30815) Plates

Density Tensile Strength Yield Strength (0.2%Offset) Elongation
7.8 g/cm3 MPa -600 MPa – 310 40 %

253 MA ( UNS S30815) Plates Thickness Chart

253 MA ( UNS S30815) Gauge Chart*
Gauge Number Inches MM
8 .17187 4.365
9 .15625 3.968
10 .14062 3.571
11 .125 3.175
12 .10937 2.778
14 .07812 1.984
16 .0625 1.587
18 .050 1.270
20 .0375 .9525
22 .03125 .7937
24 .025 .635
26 .01875 .476
28 .01562 .396
30 .0125 .3175

253 MA ( UNS S30815) Plates Weight / Size

WEIGHT PER 253 MA ( UNS S30815) :
THICKNESS IN MM SIZE IN MM WEIGHT KG/M2
2000 X 1000 2500 X 1250 3000 X 1500
0.18 2.88 – – 1.44
0.20 3.20 – – 1.60
0.22 3.52 – – 1.76
0.24 3.84 – – 1.92
0.27 4.32 – – 2.16
0.28 4.48 – – 2.24
0.32 5.12 – – 2.56
0.38 6.08 – – 3.04
0.44 7.04 11.00 – 3.52
0.50 8.00 12.50 – 4.00
0.56 8.96 14.00 – 4.48
0.63 10.08 15.75 – 5.04
0.75 12.00 18.75 – 6.00
0.88 14.08 22.00 – 7.04
1.00 16.00 25.00 36.00 8.00
.1.13 18.08 28.25 40.00 9.04
1.25 20.00 31.25 45.00 10.00
1.38 22.03 34.50 50.00 72.00
1.50 24.00 37.50 54.00 12.00
1.75 28.00 43.75 63.00 14.00
2.00 32.00 50.00 72.00 16.00
2.25 36.00 56.25 81.00 18.00
2.50 40.00 62.50 90.00 20.00
2.75 44.00 68.75 99.00 22.00
3.00 48.00 75.00 108.00 24.00
3.25 52.00 81.25 117.00 26.00
3.50 56.00 87.50 126.00 28.00
3.75 60.00 93.75 135.00 30.00
4.00 64.00 100.00 144.00 32.00
4.25 68.00 106.25 153.00 34.00
4.50 72.00 112.50 162.00 36.00
5.00 80.00 125.00 180.00 40.00
5.50 88.00 137.50 198.00 44.00
6.00 96.00 150.00 216.00 48.00
6.50 104.00 162.50 234.00 52.00
7.00 112.00 175.00 252.00 56.00
7.50 120.00 187.50 270.00 60.00
8.00 128.00 200.00 288.00 64.00

253 MA ( UNS S30815) Plates Thickness Tolerance

Thickness
in. (mm)		 Sheet Width
36 (914.4)
in. (mm		 48 (1,219)
in. (mm)
0.017–0.030 (0.43–0.76) 0.0015 (0.038) 0.002 (0.051)
0.031–0.041 (0.79–1.04) 0.002 (0.051) 0.003 (0.076)
0.042–0.059 (1.1–1.5) 0.003 (0.076) 0.004 (0.10)
0.060–0.073 (1.5–1.9) 0.003 (0.076) 0.0045 (0.11)
0.074–0.084 (1.9–2.1) 0.004 (0.10) 0.0055 (0.14)
0.085–0.099 (2.2–2.5) 0.004 (0.10) 0.006 (0.15)
0.100–0.115 (2.5–2.9) 0.005 (0.13) 0.007 (0.18)
0.116–0.131 (2.9–3.3) 0.005 (0.13) 0.0075 (0.19)
0.132–0.146 (3.4–3.7) 0.006 (0.15) 0.009 (0.23)
0.147–0.187 (3.7–4.7) 0.007 (0.18) 0.0105 (0.2

Specialized In Following 253 MA ( UNS S30815) Plates

253 MA Stainless Steel Plates ASTM A240 253 MA Stainless Steel Plates
INOX 253 MA Stainless Steel Plates 253 MA Stainless Steel Plates Exporter
253 MA Austenitic Stainless Steel Plates Stainless Steel 253 MA Plain Plates
253 MA SS Plates Dealer Stainless Steel 253 MA Plates Stockist
253 MA Stainless Steel Plates Supplier in Mumbai SS 253 MA Plate Manufacturer in India
Stainless Steel 1.4835 Plates Cut To Size Stainless Steel 253 MA Chequered Plates
253 MA Stainless Steel Plates 253 MA Stainless Steel Plates Stockholder
Stainless Steel 253 MA Plate Supplier Type 253 MA Stainless Steel Plates Standards
SS 253 MA Plate Exporter in Mumbai 253 MA Stainless Steel Plates Exporter in india
SS Grade 253 MA Industrial Plates Stainless Steel 253 MA Plate Dealer
AISI 253 MA Plates Supplier in India ASME SA 240 253 MA SS Plates at Best Price
SS 253 MA Industrial Plates Supplier Suppliers of 253 MA Stainless Steel Plates
Stainless Steel 253 MA Plates Cut to Size SS 253 MA Plates Stockists
253 MA Stainless Steel Plates at Best Price Gr 253 MA Stainless Steel Plates
Stainless Steel 253 MA Plate Manufacturer in India Stainless Steel Grade 253 MA Plate
