Alloy 20 Plates Supplier

Table of Contents

What is Alloy 20 grade?

Alloy 20 Plates are manufactured using Alloy 20 stainless steel. Alloy 20 is a super-austenitic stainless alloy designed for maximum corrosion resistance to sulfuric acid and aggressive circumstances, which are unsuitable for typical austenitic grades.

2.4660 ALLOY 20 HR PLATES, ALLOY N08020 PLATES, NICKEL ALLOY 20 COLD ROLLED PLATES SUPPLIER IN MUMBAI, INDIA.

What are Alloy 20 Plates?

These Alloy 20 Plates are manufactured with a great range of specifications and work flexibly and reliably with all sorts of applications. The mechanical and physical properties of these Alloy 20 Plates come with the tensile strength, yield strength, modulus of elasticity, Poisson’s ratio, and elongation at break.

Characteristics of Alloy 20 Plates:

The characteristics of these Alloy 20 Plates come with a vast range. Also, these Alloy 20 Plates are suitable for high maintenance, the highest strength and corrosion resistance. Moreover, the content has excellent stability and pressure-handling capacity. Hence, Alloy 20 Plates are demanded in industrial sectors to work in various applications.

COMPETITIVE PRICE OF ALLOY 20 CUSTOM PLATES, ASTM B463 CARPENTER 20 PLATES EXPORTER IN INDIA.

Some other characteristics of Alloy 20 Plates:

  • Alloy 20 Plates promise to offer the best features, such as they have good general corrosion resistance.
  • Alloy 20 Plates are also great for providing high strength.
  • Alloy 20 Plates are resistant to chloride pitting and crevice corrosion.

These Alloy 20 Plates have optimum pressure-bearing efficiency and a smooth finish.

Alloy 20 Plates are used easily in critical applications. They are available in various sizes; hence they work flexibly and reliably with all applications. In addition, these Alloy 20 Plates provide excellent outcomes, and these plates come with the best corrosion properties.

Industrial sectors where Alloy 20 Plates are used:

The primary applications are heat exchangers, condensers, marine industries, pulp and paper industries, and off-shore oil drilling companies. In addition, power and chemical generation, petrochemicals, and gas processing are widely used for Alloy 20 Plates.

LARGEST STOCKHOLDER OF ALLOY 20 HOT ROLLED PLATES, 2.4660 NICKEL ALLOY 20 PLATES IN MUMBAI, INDIA.

SMM Industries LLP is the leading company that manufactures different ranges of Alloy 20 Plates. We are a manufacturer, stockier, and exporter of industrial products and Alloy 20 Plates. They are available in various specifications, such as dimensions, sizes, pressure classes, and forms.

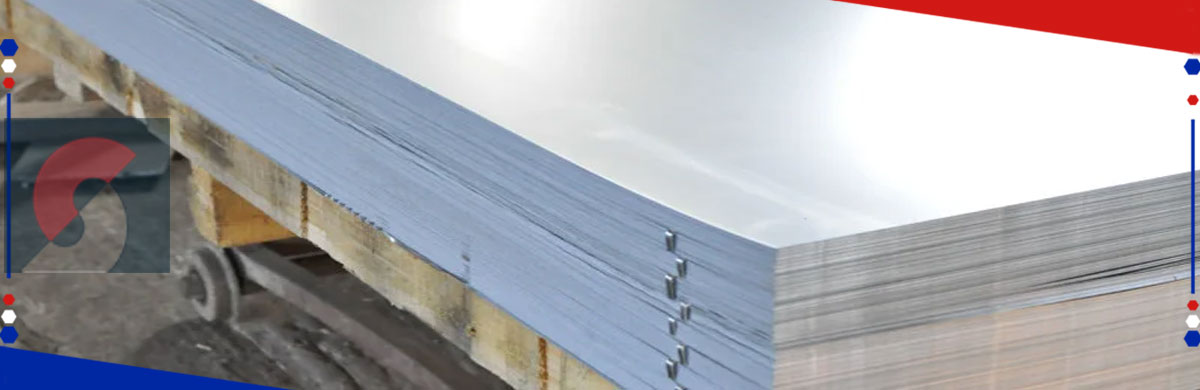

Alloy 20 plates

Specification of Alloy 20 Plates

Standard

ASTM B463/ ASME SB463

Thickness

0.3 mm to 120 mm

Width

1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Length

2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Processing Types

Hot Rolled plate, Cold Roleled Plate

Sheets Hardness

Half Hard, Quarter Hard, Soft, Hard, Spring Hard

Value added services for Plates

Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing

Value Added Service

Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Stock availability of Alloy 20 Plates

Hot Rolled Plates

Alloy 20 Hot Rolled Plates

  • Alloy 20 HR Plates
  • Alloy N08020 HR Plates
  • ASME SB 463 Alloy 20 HR Plates
  • UNS N08020 Hot Rolled Plate
  • Incoloy 20 Hot Rolled Plates
  • Carpenter Alloy 20 Hot Rolled Plates

Cold Rolled Plates

Alloy 20 Cold Rolled Plates

  • Inconel 20 Cold Rolled Plates
  • Carpenter Alloy 20 Cold Rolled Plates
  • Alloy N08020 CR Plates
  • Alloy 20 CR Plates
  • ASME SB 463 Alloy 20 CR Plates
  • UNS N08020 Cold Rolled Plate

Chequered Plates

Alloy 20 Custom Plates

  • Alloy 20cb3® Custom Plates
  • Carpenter Alloy 20 Custom Plates
  • Alloy N08020 Custom Plates
  • UNS N08020 Custom Plate
  • ASME SB 463 Alloy 20 Custom Plates

Contact us to get a quick quote

If you require any further information, Please do not hesitate to contact us.
Contact Us

Equivalent Grades Alloy 20 Plates

STANDARD WERKSTOFF NR. UNS EN AFNOR
Alloy 20 2.4660 N08020 NiCr20CuMo Z2NCUD31-20AZ

Chemical Composition of Alloy 20 Plates

Grade C Mn Si S Cu Ni Cr Fe Mo P
Alloy 20 0.07 max 2 max 1 max 0.035 max 3 – 4 32 – 38 19 – 21 29.85 min* 2 – 3 0.045 max

Mechanical Properties of Alloy 20 Plates

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.1 g/cm3 1443 °C (2430 °F) Psi -80,000, MPa -551 Psi – 35,000, MPa – 241 30 %

Alloy 20 Plates Weight Per Unit

Weight of Plate Thickness in inches
0.08 lbs/in²56.245568 kg/m² 1/4
0.06000 lbs/in²42.184176 kg/m² 3/16
0.161 lbs/in²113.1942056 kg/m² 1/2
0.121 lbs/in²85.0714216 kg/m² 3/8
0.391 lbs/in²274.9002136 kg/m² 1 1/4
0.235 lbs/in²165.221356 kg/m² 3/4
0.196 lbs/in²137.8016416 kg/m² 5/8
0.313 lbs/in²220.0607848 kg/m² 1
0.627 lbs/in²440.8246392 kg/m² 2
0.941 lbs/in²661.5884936 kg/m² 3
0.274 lbs/in²192.6410704 kg/m² 7/8
0.862 lbs/in²606.0459952 kg/m² 2 3/4
0.549 lbs/in²385.9852104 kg/m² 1 3/4
0.47 lbs/in²330.442712 kg/m² 1 1/2
0.784 lbs/in²551.2065664 kg/m² 2 1/2
0.705 lbs/in²495.664068 kg/m² 2 1/4

Alloy 20 Plates Weight / Size

Stocked Sizes
Size (in inches)
Size (in mm)
.125″
3.18mm
.134″
3.40mm
.156″
3.96mm
.187″
4.75mm
.250″
6.35mm
.312″
7.92mm
.375″
9.53mm
.500″
12.7mm
.600″
15.9mm
.750″
19.1mm
.875″
22.2mm
1″
25.4mm
1.125″
28.6mm
1.250″
31.8mm
1.500″
38.1mm
1.750″
44.5mm
2″
50.8mm
2.500″
63.5mm
3″
76.2mm

Alloy 20 Plates Thickness Tolerance

Tolerance over and under nominal thickness t (mm)
Width w (mm) 2.54.56.08.010.012.516.020.025.030
w < 1200 0.20 0.23 0.30 0.32 0.35 0.80 0.80 0.80 1.0 1.4
1200< w <1500 0.20 0.25 0.30 0.35 0.38 0.80 0.80 0.90 1.0 1.4
1500< w <1800 0.20 0.28 0.32 0.38 0.40 0.80 0.80 0.90 1.1 1.5
1800< w <2100 0.20 0.30 0.36 0.40 0.45 0.80 0.80 0.90 1.1 1.5
2100< w <2400 0.80 0.80 0.80 0.80 0.80 0.90 1.0 1.1 1.5
2400< w <2700 0.80 0.80 0.80 0.80 0.90 1.0 1.1 1.3 1.7
2700< w <3000 0.80 0.90 1.0 1.0 1.0 1.1 1.3 1.4 1.8
