Inconel X-750 Sheets Supplier

Table of Contents

What is Inconel X-750 alloy?

Inconel X-750 alloy is a nickel, a chromium-based alloy made with precipitation hard enable by adding elements like Titanium and Aluminium. This element, nickel, indicates high creep-rupture strength at high temperatures. It also has the beautiful properties of working at cryogenic temperatures.

JIS NCF X-750 SHEETS, INCONEL X-750 COLD, ROLLED SHEETS, NICKEL ALLOY X-750 SHEETS MANUFACTURER IN MUMBAI, INDIA.

Inconel X-750 alloy is resistant to chloride-ion stress-corrosion cracking. Inconel X-750 Sheets have similar corrosion resistance as Inconel 600 grade products have in many working media. Inconel X-750 Sheets are frequently used to seal other gas turbine rings.

The excellent resistance of Inconel X-750 Sheets is helpful for high-temperature springs and bolts. The manufactured sheets provide good resistance to combustion gas environments at specific temperatures.



Attributes of Inconel X-750 Sheets:

  • Inconel X-750 Sheets offer high strength at temperatures after suitable heat treatment.
  • These sheets provide creep-rupture strength at high temperatures.
  • These sheets show high tensile and creep-rupture properties.
  • Manufactured Inconel X-750 Sheets are resistant to various industrial corrosively.
  • Inconel X-750 Sheets have excellent features, including machinability and welding.
  • Resistance to chloride-ion stress-corrosion cracking.

COMPETITIVE PRICE OF ALLOY X-750 SHIM INCONEL X-750 PERFORATED SHEETS, ALLOY X-750 SHEETS EXPORTER IN INDIA.

Characteristics of Inconel X-750 Sheets:

Inconel X-750 Sheets have mechanical properties such as melting point, higher tensile strength, yield strength, and elongation. These sheets contain chromium and nickel alloy that consume excellent oxidation-resistant capacity at a high-temperature range. Inconel X-750 Sheets have excellent resistance in the carburizing atmosphere containing chloride. Nickel content provides high resistance to stress corrosion cracking. Also, it offers healthy resistance to alkaline solutions.

Industrial sectors where Inconel X-750 Sheets are used widely:

  • Aircraft structures
  • Rocket engines
  • Nuclear reactors
  • Heat treats fixtures
  • Exhaust valves of diesel engines
  • Cryogenic vessels
  • Springs
  • Fasteners

NICKEL ALLOY X-750 SHEETS, INCONEL ALLOY X-750 SHEETS PRICE LIST, INCONEL X-750 SHEETS STOCKIST IN MUMBAI.

SMM Industries LLP is a manufacturing company that provides various products manufactured widely following national and international standards. We manufacture these sheets with custom specifications so they can be widely used. Inconel X-750 Sheets are used in a different range of applications, including critical ones.

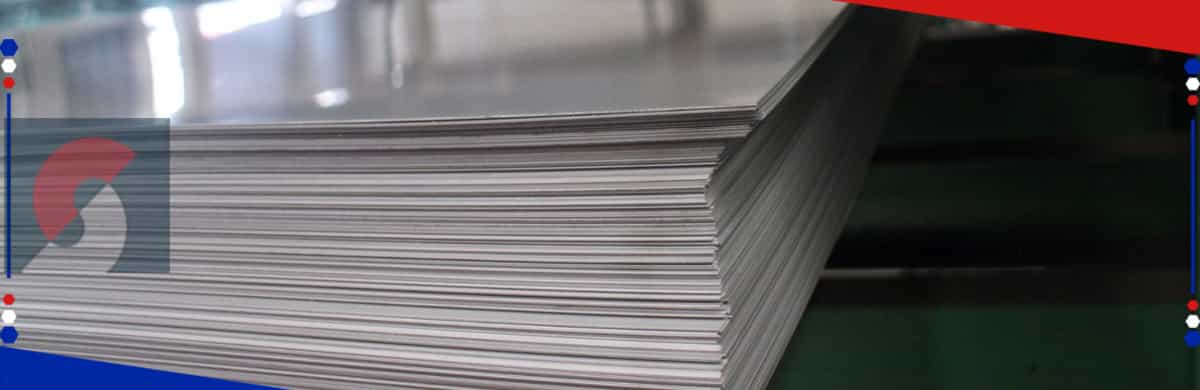

Inconel X-750 Sheets

Specification of Inconel X-750 Sheets

Standard

ASTM B670/ ASME SB670

Thickness

0.3 mm to 120 mm

Width

1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Length

2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Tempers

Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard

Sheets Hardness

Half Hard, Quarter Hard, Soft, Hard, Spring Hard

Value added services for Sheets

Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing

Value Added Service

Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Stock availability of Inconel X-750 Sheets

Hot Rolled Sheets

Inconel X-750 Hot Rolled Sheets

  • ASME SB 670 Inconel X-750 HR Sheets
  • Alloy X-750 Hot Rolled Sheets
  • Inconel Alloy N07750 HR Sheets
  • X-750 Inconel Hot Rolled Sheets
  • X-750 Inconel HR Sheets

Cold Rolled Sheets

Inconel X-750 Cold Rolled Sheets

  • Alloy X-750 Cold Rolled Sheets
  • ASME SB 670 Inconel Alloy X-750 CR Sheets
  • Inconel N07750 CR Sheets
  • X-750 Inconel CR Sheets
  • X-750 Inconel Cold Rolled Sheets

Perforated Sheets

Inconel X-750 Perforated Sheets

  • Inconel N07750 Perforated Sheets
  • ASME SB 670 Inconel Alloy X-750 Perforated Sheets
  • X-750 Inconel Perforated Sheets
  • Alloy X-750 Perforated Sheets

Contact us to get a quick quote

If you require any further information, Please do not hesitate to contact us.
Contact Us

Equivalent Grades Inconel X-750 Sheets

STANDARD UNS WNR.
Inconel X-750 N07750 2.4669

Chemical Composition of Inconel X-750 Sheets

Grade Al C Cr Co Cu Fe Mn Nb Ni Ti S Si
Inconel x-750 0.40-1.0 .08 max 14.0-17.0 1.00 max 0.50 max 5.0-9.0 1.00 max 0.70-1.20 70.0 min 2.25-2.75 .01 max .50 max

Mechanical Properties of Inconel X-750 Sheets

Ultimate Tensile Strength .2% Yield Strength Elongation %
1250 MPa, 181000 psi 850 MPa, 123000 psi 30

Inconel X-750 Sheet Thickness Chart

Inconel Gauge Chart*
Gauge Number Inches MM
8 .17187 4.365
9 .15625 3.968
10 .14062 3.571
11 .125 3.175
12 .10937 2.778
14 .07812 1.984
16 .0625 1.587
18 .050 1.270
20 .0375 .9525
22 .03125 .7937
24 .025 .635
26 .01875 .476
28 .01562 .396
30 .0125 .3175

Inconel X-750 Sheet Weight / Size

WEIGHT PER INCONEL SHEET :
THICKNESS IN MM SIZE IN MM WEIGHT KG/M2
2000 X 1000 2500 X 1250 3000 X 1500
0.18 2.88 – – 1.44
0.20 3.20 – – 1.60
0.22 3.52 – – 1.76
0.24 3.84 – – 1.92
0.27 4.32 – – 2.16
0.28 4.48 – – 2.24
0.32 5.12 – – 2.56
0.38 6.08 – – 3.04
0.44 7.04 11.00 – 3.52
0.50 8.00 12.50 – 4.00
0.56 8.96 14.00 – 4.48
0.63 10.08 15.75 – 5.04
0.75 12.00 18.75 – 6.00
0.88 14.08 22.00 – 7.04
1.00 16.00 25.00 36.00 8.00
.1.13 18.08 28.25 40.00 9.04
1.25 20.00 31.25 45.00 10.00
1.38 22.03 34.50 50.00 72.00
1.50 24.00 37.50 54.00 12.00
1.75 28.00 43.75 63.00 14.00
2.00 32.00 50.00 72.00 16.00
2.25 36.00 56.25 81.00 18.00
2.50 40.00 62.50 90.00 20.00
2.75 44.00 68.75 99.00 22.00
3.00 48.00 75.00 108.00 24.00
3.25 52.00 81.25 117.00 26.00
3.50 56.00 87.50 126.00 28.00
3.75 60.00 93.75 135.00 30.00
4.00 64.00 100.00 144.00 32.00
4.25 68.00 106.25 153.00 34.00
4.50 72.00 112.50 162.00 36.00
5.00 80.00 125.00 180.00 40.00
5.50 88.00 137.50 198.00 44.00
6.00 96.00 150.00 216.00 48.00
6.50 104.00 162.50 234.00 52.00
7.00 112.00 175.00 252.00 56.00
7.50 120.00 187.50 270.00 60.00
8.00 128.00 200.00 288.00 64.00

Inconel X-750 Sheet Thickness Tolerance

Thickness
in. (mm)		 Sheet Width
36 (914.4)
in. (mm		 48 (1,219)
in. (mm)
0.017–0.030 (0.43–0.76) 0.0015 (0.038) 0.002 (0.051)
0.031–0.041 (0.79–1.04) 0.002 (0.051) 0.003 (0.076)
0.042–0.059 (1.1–1.5) 0.003 (0.076) 0.004 (0.10)
0.060–0.073 (1.5–1.9) 0.003 (0.076) 0.0045 (0.11)
0.074–0.084 (1.9–2.1) 0.004 (0.10) 0.0055 (0.14)
0.085–0.099 (2.2–2.5) 0.004 (0.10) 0.006 (0.15)
0.100–0.115 (2.5–2.9) 0.005 (0.13) 0.007 (0.18)
0.116–0.131 (2.9–3.3) 0.005 (0.13) 0.0075 (0.19)
0.132–0.146 (3.4–3.7) 0.006 (0.15) 0.009 (0.23)
0.147–0.187 (3.7–4.7) 0.007 (0.18) 0.0105 (0.2
