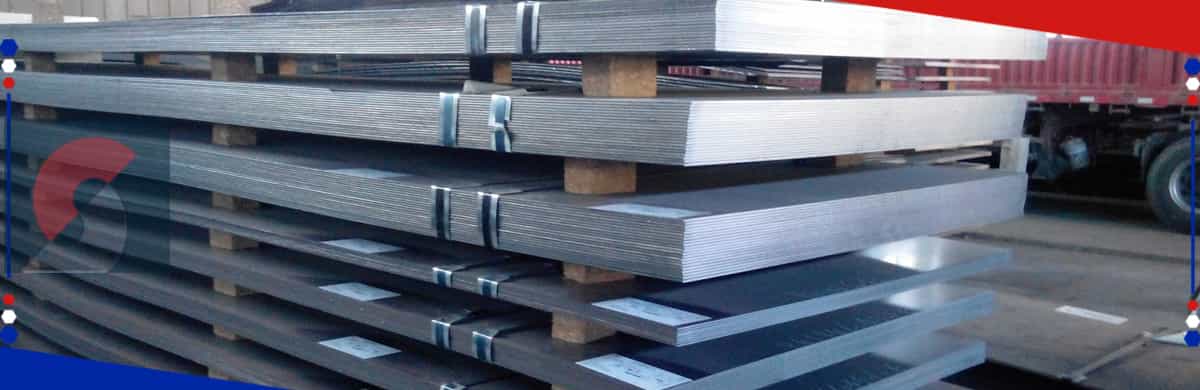

Stainless Steel 309 Sheets Supplier

Table of Contents

Stainless Steel 309 Sheet is produced through austenitic stainless steel designed for superior corrosion resistance. Stainless Steel 309 Sheets have the main components of metals, including chromium, nickel, manganese, phosphorus, sulfur, silicon, and iron. After iron, chromium is the second most abundant element in the alloy. Chromium has an excellent chemical component with superior resistance and may produce a corrosion protection coating on the surface, isolating the metal from the outside and protecting the Stainless Steel 309 Sheet from oxidation. Corrosion resistance improves once the oxide layer coating is removed.

STAINLESS STEEL 309 HR AND COLD ROLLED SHEETS MANUFACTURER IN MUMBAI, INDIA.

Under non-cyclic circumstances, the Stainless Steel 309 Sheet prevents oxidation up to very high temperatures by around 1850°F.

Thermo- Mechanical Properties of Stainless Steel 309 Sheets:

  • Stainless Steel 309 Sheet has thermal conductivity and a high thermal expansion coefficient.
  • Stainless Steel 309 Sheets hold a high yield strength, tensile strength, elongation, and hardness.
  • Stainless Steel 309 Sheet also owns the property of elastic modulus and higher tensile strength.
  • The Stainless Steel 309 Sheet surface is smooth and has a high level of toughness.
  • A few mechanical properties, such as Stainless Steel 309 Sheet, have resistance against acids, alkaline gasses, liquids, and other conditions.

STOCKIST OF JINDAL SS 309 SHIM SHEETS MUMBAI, COMPETITIVE PRICE OF SS 309 PERFORATED, CR, AND HOT ROLLED SHEET IN INDIA.

Stainless Steel 309 Sheets Have a Lot of Benefits:

  • Stainless Steel 309 Sheet provides high-level corrosion resistance.
  • Stainless Steel 309 Sheets are more resistant to aggressive environments.
  • Stainless Steel 309 Sheet has an abrasion resistance property, which is frequently employed at extremely high temperatures.
  • Stainless Steel 309 Sheets are working stable at high temperatures.
  • The high carbon content in Stainless Steel 309 Sheet material improves the creep resistance quality.



Stainless Steel 309 Sheets Have a Wide Range of Applications:

Stainless Steel 309 Sheets are employed in aviation engines and components, as well as boiler covers and heat transfer. Boiler chambers, furnace components, oven claddings, firebox panels, and other high-temperature devices.

SMM Industries LLP is one of the market’s leading producers, suppliers, and exporters of Stainless Steel 309 Sheets. We use cutting-edge technology machinery to manufacture these Stainless Steel 309 sheets to provide excellent quality products for clients.

GET JINDAL SS M309 SHEETS PRICE LIST. LARGEST STOCKHOLDER OF STAINLESS STEEL 309 2B AND 2D FINISH SHEETS STOCKIST IN INDIA.

Stainless Steel 309 Sheets

Specification of Stainless Steel 309 Sheets

Standard

ASTM A240 / ASME SA240

Thickness

0.3 mm to 120 mm

Width

1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Length

2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Sheets Surface Finish

No.1, 2B, BA, 8K Mirror, Hairline, satin (Met with Plastic Coated) Embossed, brush, No.4, HL, matt, pvc etc.

Sheets Hardness

Half Hard, Quarter Hard, Soft, Hard, Spring Hard

Value added services for Sheets

Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing

Value Added Service

Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Stock availability of STAINLESS sTEEL 309 Sheets

Hot Rolled Sheets

Stainless Steel 309 Hot Rolled Sheets

  • ASME SA 240 TP 321 Stainless Steel HR Sheets
  • SS 309 Hot Rolled Sheets
  • Stainless Steel S30900 HR Sheets
  • 309 Stainless Steel Hot Rolled Sheets
  • 309 Stainless Steel HR Sheets

Cold Rolled Sheets

Stainless Steel 309 Cold Rolled Sheets

  • 309 Stainless Steel Cold Rolled Sheets
  • ASME SA 240 TP 321 Stainless Steel CR Sheets
  • 309 Stainless Steel CR Sheets
  • SS 309 Cold Rolled Sheets
  • Stainless Steel S30900 CR Sheets

Perforated Sheets

Stainless Steel 309 Perforated Sheets

  • ASME SA 240 TP 321 Stainless Steel Perforated Sheets
  • Stainless Steel S30900 Perforated Sheets
  • SS 309 Perforated Sheets
  • 309 Stainless Steel Perforated Sheets

Contact us to get a quick quote

If you require any further information, Please do not hesitate to contact us.
Contact Us

Equivalent Grades Stainless Steel 309 Sheets

STANDARD WERKSTOFF NR. UNS EN AISI
SS 309 1.4828 S30900 X12CrNi23-13 309

Chemical Composition of Stainless Steel 309 Sheets

GradeCMnSiPSCrMoNiFe
SS 3090.20 max2 max1 max0.045 max0.030 max23 max–14 max0 max

Mechanical Properties of Stainless Steel TP 309 Sheets

Grade Tensile Strength Yield Strength (0.2%Offset) Elongation
SS 309 Psi – 89900 , MPa – 620 Psi – 45000 , MPa – 310 45 %

Stainless Steel 309 Sheet Thickness Chart

Stainless Steel Gauge Chart*
Gauge
Number		 Inches MM
8 .17187 4.365
9 .15625 3.968
10 .14062 3.571
11 .125 3.175
12 .10937 2.778
14 .07812 1.984
16 .0625 1.587
18 .050 1.270
20 .0375 .9525
22 .03125 .7937
24 .025 .635
26 .01875 .476
28 .01562 .396
30 .0125 .3175

Stainless Steel 309 Sheet Weight / Size

WEIGHT PER STAINLESS STEEL SHEET :
THICKNESS IN MM SIZE IN MM WEIGHT KG/M2
2000 X 1000 2500 X 1250 3000 X 1500
0.18 2.88 – – 1.44
0.20 3.20 – – 1.60
0.22 3.52 – – 1.76
0.24 3.84 – – 1.92
0.27 4.32 – – 2.16
0.28 4.48 – – 2.24
0.32 5.12 – – 2.56
0.38 6.08 – – 3.04
0.44 7.04 11.00 – 3.52
0.50 8.00 12.50 – 4.00
0.56 8.96 14.00 – 4.48
0.63 10.08 15.75 – 5.04
0.75 12.00 18.75 – 6.00
0.88 14.08 22.00 – 7.04
1.00 16.00 25.00 36.00 8.00
.1.13 18.08 28.25 40.00 9.04
1.25 20.00 31.25 45.00 10.00
1.38 22.03 34.50 50.00 72.00
1.50 24.00 37.50 54.00 12.00
1.75 28.00 43.75 63.00 14.00
2.00 32.00 50.00 72.00 16.00
2.25 36.00 56.25 81.00 18.00
2.50 40.00 62.50 90.00 20.00
2.75 44.00 68.75 99.00 22.00
3.00 48.00 75.00 108.00 24.00
3.25 52.00 81.25 117.00 26.00
3.50 56.00 87.50 126.00 28.00
3.75 60.00 93.75 135.00 30.00
4.00 64.00 100.00 144.00 32.00
4.25 68.00 106.25 153.00 34.00
4.50 72.00 112.50 162.00 36.00
5.00 80.00 125.00 180.00 40.00
5.50 88.00 137.50 198.00 44.00
6.00 96.00 150.00 216.00 48.00
6.50 104.00 162.50 234.00 52.00
7.00 112.00 175.00 252.00 56.00
7.50 120.00 187.50 270.00 60.00
8.00 128.00 200.00 288.00 64.00

Stainless Steel 309 Sheet Thickness Tolerance

Thickness
in. (mm)		 Sheet Width
36 (914.4)
in. (mm		 48 (1,219)
in. (mm)
0.017–0.030 (0.43–0.76) 0.0015 (0.038) 0.002 (0.051)
0.031–0.041 (0.79–1.04) 0.002 (0.051) 0.003 (0.076)
0.042–0.059 (1.1–1.5) 0.003 (0.076) 0.004 (0.10)
0.060–0.073 (1.5–1.9) 0.003 (0.076) 0.0045 (0.11)
0.074–0.084 (1.9–2.1) 0.004 (0.10) 0.0055 (0.14)
0.085–0.099 (2.2–2.5) 0.004 (0.10) 0.006 (0.15)
0.100–0.115 (2.5–2.9) 0.005 (0.13) 0.007 (0.18)
0.116–0.131 (2.9–3.3) 0.005 (0.13) 0.0075 (0.19)
0.132–0.146 (3.4–3.7) 0.006 (0.15) 0.009 (0.23)
0.147–0.187 (3.7–4.7) 0.007 (0.18) 0.0105 (0.2

Specialized in Following Stainless Steel 309 Sheets

Stainless Steel 309 Sheets Cut to SizeSS 309 Sheets Stockists
Stainless Steel 309 Sheets Exporter309 Stainless Steel Sheets Stockholder
309 SS Sheets DealerStainless Steel 309 Sheets Stockist
AISI 309 Sheets Supplier in IndiaASME SA 240 309 SS Sheets at Best Price
309 Stainless Steel Sheets at Best PriceStainless Steel Gr 309 Sheets
SS Grade 309 Industrial SheetsStainless Steel 309 Sheet Dealer
INOX 309 Stainless Steel Sheets309 Stainless Steel Sheets Exporter
SS 309 Industrial Sheets SupplierSuppliers of 309 Stainless Steel Sheets
309 Stainless Steel Sheets Exporter in india309 Austenitic Stainless Steel Sheets
309 Stainless Steel SheetsASTM A240 TP309 Stainless Steel Sheets
Stainless Steel 309 Sheet Manufacturer in IndiaStainless Steel Grade 309 Sheet
Stainless Steel 309 Sheet SupplierType 309 Stainless Steel Sheets Standards
Stainless Steel 1.4828 Sheets Cut To SizeStainless Steel 309 Perforated Sheets Stockholder
309 Stainless Steel Sheets Supplier in MumbaiSS 309 Sheet Manufacturer in India
